Zhongshan Risheng Stripping Equipment Parts
Professional manufacturer of enameled wire stripping machines - paint removal machines - stripping consumables
1 / 3
| Machine Model | GD-7 |
|---|---|
| Applicable wire diameter | 0．35－5．00mm |
| Machine Dimensions | 180X110X100mm |
| Operating Voltage | 220v/50Hz |
| Motor power | 75w |
| speed | 0-10000r/min |
| Machine Weight | 1．5kg |
| Optional accessories | Three-claw blade |
| Stripping length | 2－38mm |
| Brand | Risheng Hardware |
以上为标准机型数据，线径、电压及配件可按需定制，具体请联系客服确认。

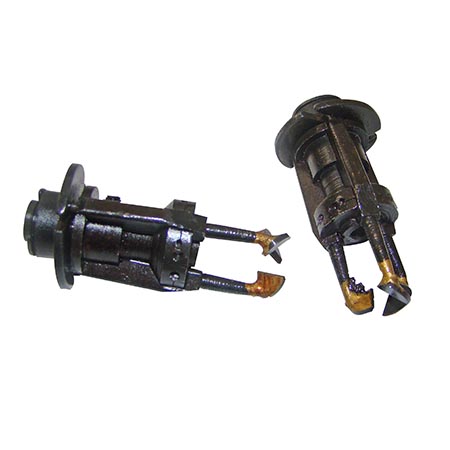

The GD-7 stationary enameled wire scraper can be fixed to the workbench. It consists of a single-phase series excitation motor, a paint stripping knife holder, a foot pedal and a governor. It makes it easy to quickly peel off the various insulating paint films on the surface of the enameled wire without damaging its matrix. It is a necessary tool for the production of motors, electrical appliances, meters, radios, household appliances, and for maintenance. It is superior to manual knife scraping, grinding wheel grinding, fire burning, potion corrosion and other paint removal methods. Not only greatly improves wire soldering efficiency, but also significantly improves soldering quality.
Specifications
Installation and Use
Fix the scraper to the workbench. Extend the enameled wire into the center of the tool holder, press the start switch, and the motor will turn. Slowly pull the enameled wire out of the tool holder and the stripping is complete. According to the thickness of the enameled wire, the speed of the blade is adjusted by controlling the governor. The finer the wire diameter, the lower the speed is required, and the thicker the wire diameter, the faster the speed is adjusted.
