| Machine Model | GD-6E Enameled Wire Lacquer Remover |
|---|---|
| Applicable wire diameter | 0.28－6.5mm |
| Machine Dimensions | 255 x 155 x 155mm |
| Operating Voltage | 220v/50Hz |
| Motor power | 120w |
| speed | 2800r/min |
| Machine Weight | 6kg |
| Optional accessories | Tapered Blade/Cylindrical Blade/Flat Blade |
| Stripping length | 2-70mm (can be custom lengthened) |
| Manufacturer | Risheng Hardware |
以上为标准机型数据，线径、电压及配件可按需定制，具体请联系客服确认。
GD-6E enameled wire stripper | The enameled wire stripper uses the latest design of tungsten steel high-speed paint stripping blade, which can completely remove any hard insulating paint, enamel paint, ML, lsonel, etc. on the wire surface without damaging the copper wire itself. Particularly suitable where stripping must reach the bottom of the coil, easy to operate with excellent results. The GD-6E enameled wire paint removal machine has a stripping-length stop device that accurately controls the stripping length of the enameled wire; without serious pollution or hazards, stripping is fast and safe.Can be equipped with a vacuum cleaner
Specifications
Installation and use
Select the appropriate knife head, install it on the chuck at the front of the machine, insert an enameled wire in the middle of the knife head, use a fixed wrench to adjust the chuck to gently clamp the enameled wire, then exit the enameled wire, after starting the switch, hold the coil part and easily push the enameled wire into the high-speed rotating knife head, straighten Until the predetermined paint length is reached, and then carefully withdraw the enameled wire, the paint stripping work can be completed. If necessary, the caliber of the blade head can be adjusted by relaxing the same tightening chuck to control the desired paint stripping effect, because when the machine is started and the blade head rotates at a high speed, the insulating paint or oxide of the enameled wire is removed, and the paint stripped enameled wire has a bright and clean surface.

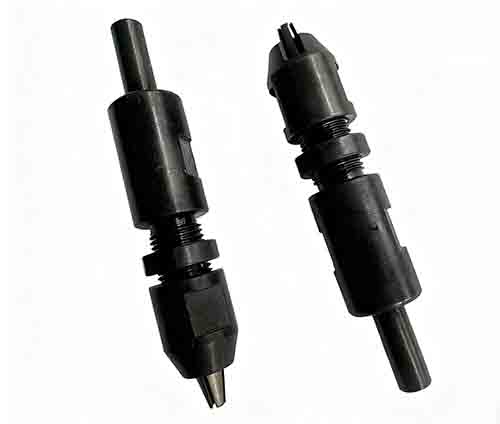

GD-6Appendix to the specifications of the blade of the paint stripper:
| Cylindrical R (flat head) model | Applicable wire diameter | Taper R (flat head) model | Applicable wire diameter |
| *0# | 0.28mm---------0.50mm | *0# | 0.28mm---------0.50mm |
| 1# | 0.51mm---------0.90mm | 1# | 0.51mm---------0.90mm |
| 2# | 0.90mm---------1.30mm | 2# | 0.90mm---------1.30mm |
| 3# | 1.30mm---------1.60mm | 3# | 1.30mm---------1.60mm |
| 4# | 1.60mm---------1.90mm | 4# | 1.60mm---------1.90mm |
| *5# | 1.90mm---------2.30mm | *5# | 1.90mm---------2.30mm |
| *6# | 2.30mm---------2.60mm | *6# | 2.30mm---------2.60mm |
| *7# | 2.60mm---------2.90mm | *7# | 2.60mm---------2.90mm |
| *8# | 2.90mm---------3.20mm | *8# | 2.90mm---------3.20mm |
| *9# | 3.20mm---------3.60mm | *9# | 3.20mm---------3.60mm |
| *10# | 3.60mm---------3.90mm | *10# | 0mm---------0mm |
| *11# | 3.90mm---------4.20mm | *11# | 0mm---------0mm |
| *12# | 4.20mm---------4.50mm | *12# | 0mm---------0mm |
| *13# | 4.50mm---------4.80mm | *13# | 0mm---------0mm |
| *14# | 4.80mm---------5.20mm | *14# | 0mm---------0mm |
