GD-6D High-Performance Enameled Wire Stripping Machine

GD-6D high-performance enameled wire stripping leather machine | Enameled wire stripping machine, using the latest design of special hard material high-speed diamond (alloy) stripping blade, durable, can completely remove any hard insulating paint on the wire surface, enamel paint, ML, lsonel, etc., without damaging the copper wire itself. Particularly suitable where stripping must reach the bottom of the coil, easy to operate with excellent results; without serious pollution or hazards, stripping is fast and safe.Can be equipped with a vacuum cleaner

Specifications

Machine model GD-6D stripping machine Applicable wire diameter 0.35 - 6.50 mm Machine size 270 x 165 x 170mm

Working voltage 220v/50Hz Motor power 120w Speed 2800r/min Machine weight 6.8kg

Optional Accessories Cylindrical Blade/Conical Blade Paint Length 4-70mm Manufacturer Zhongshan Sunrise

Installation and Use

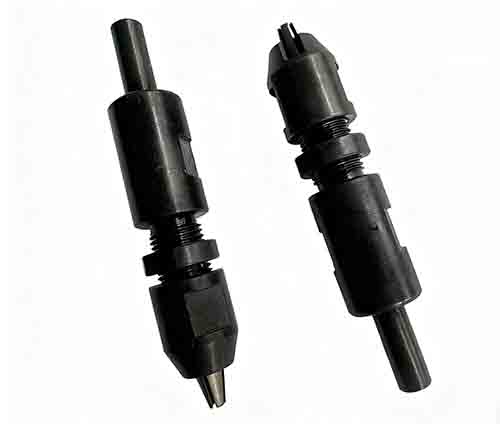

Select the appropriate knife head, install it on the chuck at the front of the machine, insert an enameled wire in the middle of the knife head, adjust the chuck with a fixed wrench to gently clamp the enameled wire, then pull the enameled wire out, activate the switch, hold the coil part in your hand and easily push the enameled wire into the high-speed rotating knife head until Reach the predetermined paint stripping length, and then carefully withdraw the enameled wire. The paint stripping work can be completed. If necessary, the caliber of the cutter head can be adjusted by relaxing and tightening the chuck to control the desired paint stripping effect, because when the machine is started and the cutter head rotates at a high speed, the insulating paint or oxide of the enameled wire is cut off, and the paint stripped enameled wire has a bright and clean surface.

GD-6DThe enameled wire stripping leather machine can set the required paint stripping length, can loosen the fixing screw of the chuck, after exiting the chuck, see the limit ejector pin of the paint stripping length, adjust the limit ejector pin through the fixing screw, and can set and control the paint stripping length of the enameled wire.
Zhongshan Risheng Hardware Products Co., Ltd. mainly develops, manufactures and sells enameled wire de-painting machines, magnetic loop coil de-painting machines, de-painting machines, copper-coated aluminum enameled wire de-painting machines, aluminum enameled wire de-painting machines, de-painting machines, enameled wire de-painting machines, de-painting machinesMainly production and so on.

Related Products Special belt for car rotor Enameled wire stripping machine parts Enameled wire paint removal machine belt Interfaceless continuous enameled wire stripping machine belt Enameled wire paint removal blade | stripping blade

Customers are welcome to sample test and paint stripping products customization!Welcome to sample test and peeling paint product customization ! Your browser does not support HTML5 video tags.
