GD-6A new automatic four-claw paint remover

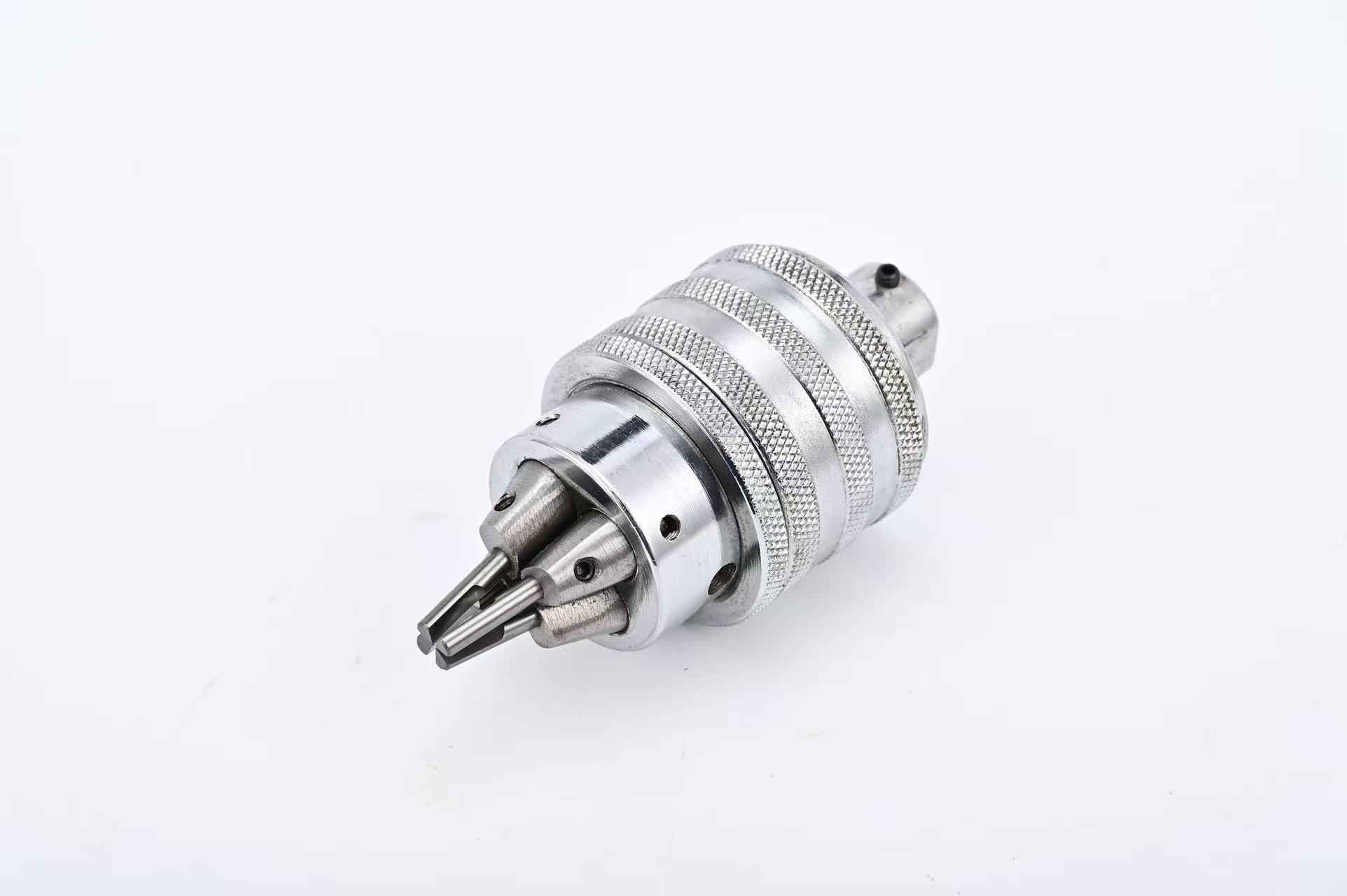

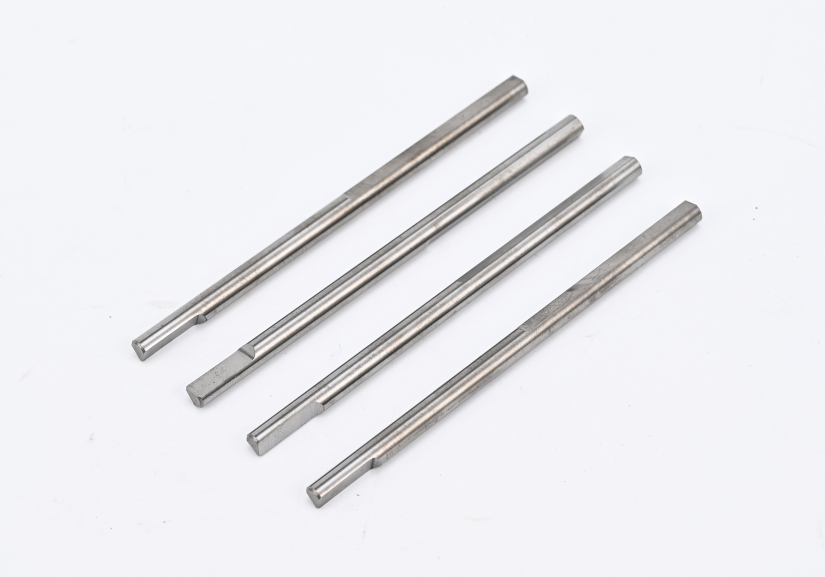

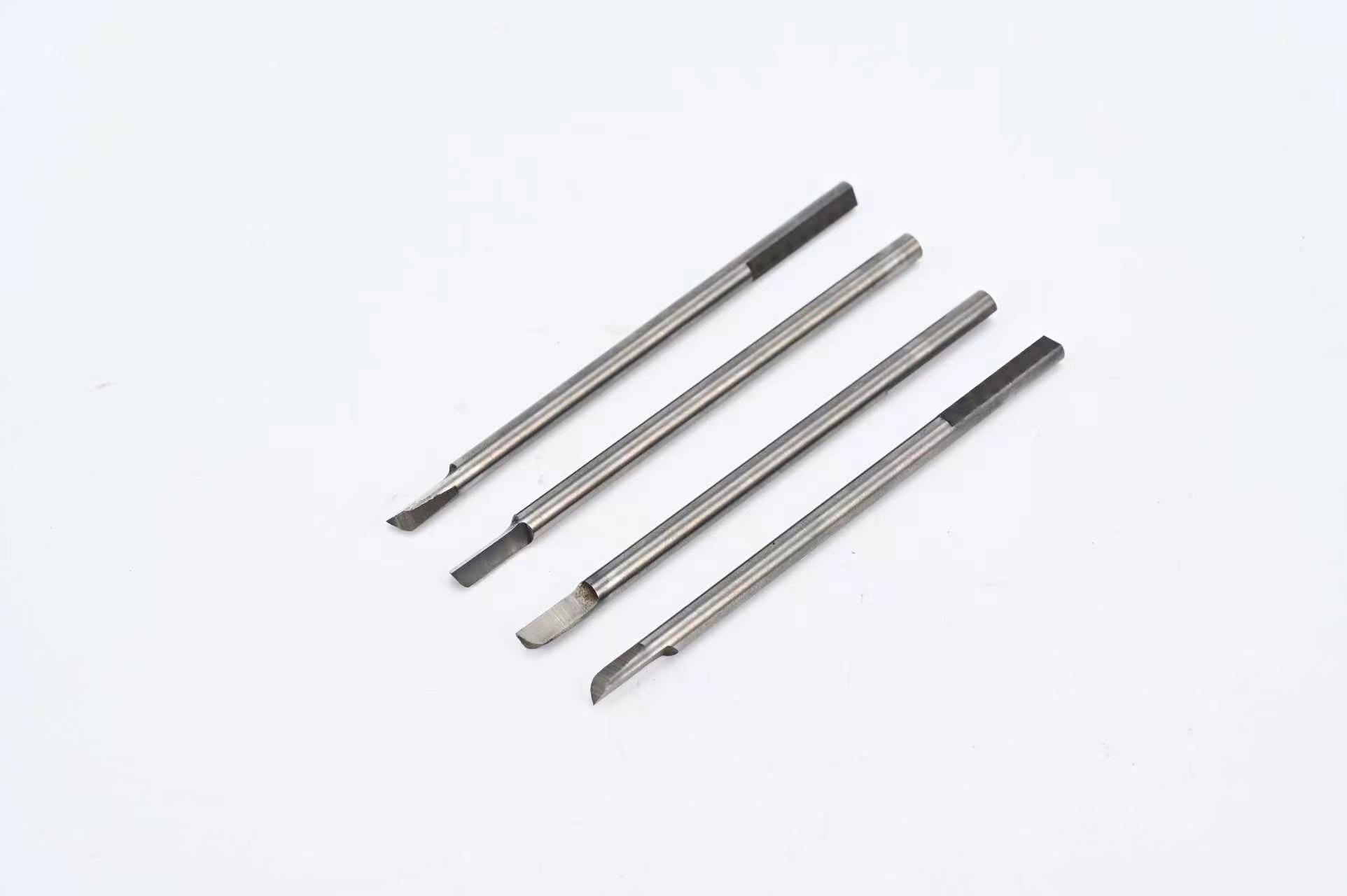

The GD-6A new automatic four-claw enameled wire stripping machine is the latest new product developed and successfully developed by our company: it adopts the latest processing technology and is designed exclusively. The blade is made of four extra-hard tungsten alloy rods. Knife edge centripetal point cutting, taper adjustable principle. And the unique design of convenient and fast chip removal. Combined with the convenience of unloading and adjustment, and the flexible use of the safety shield, it is based on the user's thoughts and the user's urgency. The product has been trusted and praised by users in the process of being put on the market. Solved the problem that the wire diameter is slightly bent and the one-time paint stripping is not clean, and the problem of slow tooling speed with different wire diameters in the production process, this product is currently an ideal product that users can trust and safe. (Different wire diameters and the same set of tools, one-time adjustment of the tool is only a few seconds or so, no tools are needed, convenient and fast.

GD-6A new four-claw enameled wire stripper, applicable wire diameter range: about 0.35-5.0mm. It can completely remove any hard insulating paint, enamel paint, ML, lsonel, etc. on the wire surface without damaging the copper wire itself. Especially suitable for use until the bottom of the coil, easy to operate, excellent results. GD-6A new automatic four-claw enameled wire paint stripper is equipped with a paint stripping length termination device, which can accurately control the paint stripping length of enameled wires. In the absence of serious pollution and hazards, the paint stripping work is fast and safe.Can be equipped with a vacuum cleaner
Specification:

Operation method: [See the operation example diagram for details]
A. Plug in the 220V AC power supply.
B. Remove the shield from the blade head part first. Adjust the scraping edge according to the required scraping wire diameter; Use your hand to twist the adjustment nut to a large clockwise and a small counterclockwise adjustment of the wire diameter tool size, without any adjustment tools.
C. Turn the adjusting nut (adjust the size of the scraping blade edge, large clockwise and small counterclockwise), take the enameled wire in one hand, adjust the adjusting nut in the other hand, and there is slight friction between the blade edge and the surface of the enameled wire diameter, then tighten the retaining ring with your hand.
D. The limiting pin is adjusted and locked, and the protective cover is installed.
E. Press the power switch and the motor starts running.
F. Hold the enameled wire that needs to be scraped flat and extend into the inlet, and begin to remove the paint.

Zhongshan Risheng Hardware Products Co., Ltd. is mainly engaged in the research and development, manufacturing and sales ofenameled wire de-painting machine, four-claw de-painting machine, automatic de-painting machine, magnetic loop coil de-painting machine, de-painting root de-painting machine, copper-coated aluminum enameled wire de-painting machine sales, aluminum enameled wire de-painting machine, de-painting machineProduction, enameled wire stripping leather machine, stripping leather machine production and so on.

Related Products Special belt for car rotor Enameled wire stripping machine parts Enameled wire paint removal machine belt Interfaceless continuous enameled wire stripping machine belt Enameled wire paint removal blade | stripping blade

Customers are welcome to sample test and paint stripping products customization!Welcome to sample test and peeling paint product customization ! Your browser does not support HTML5 video tags.
