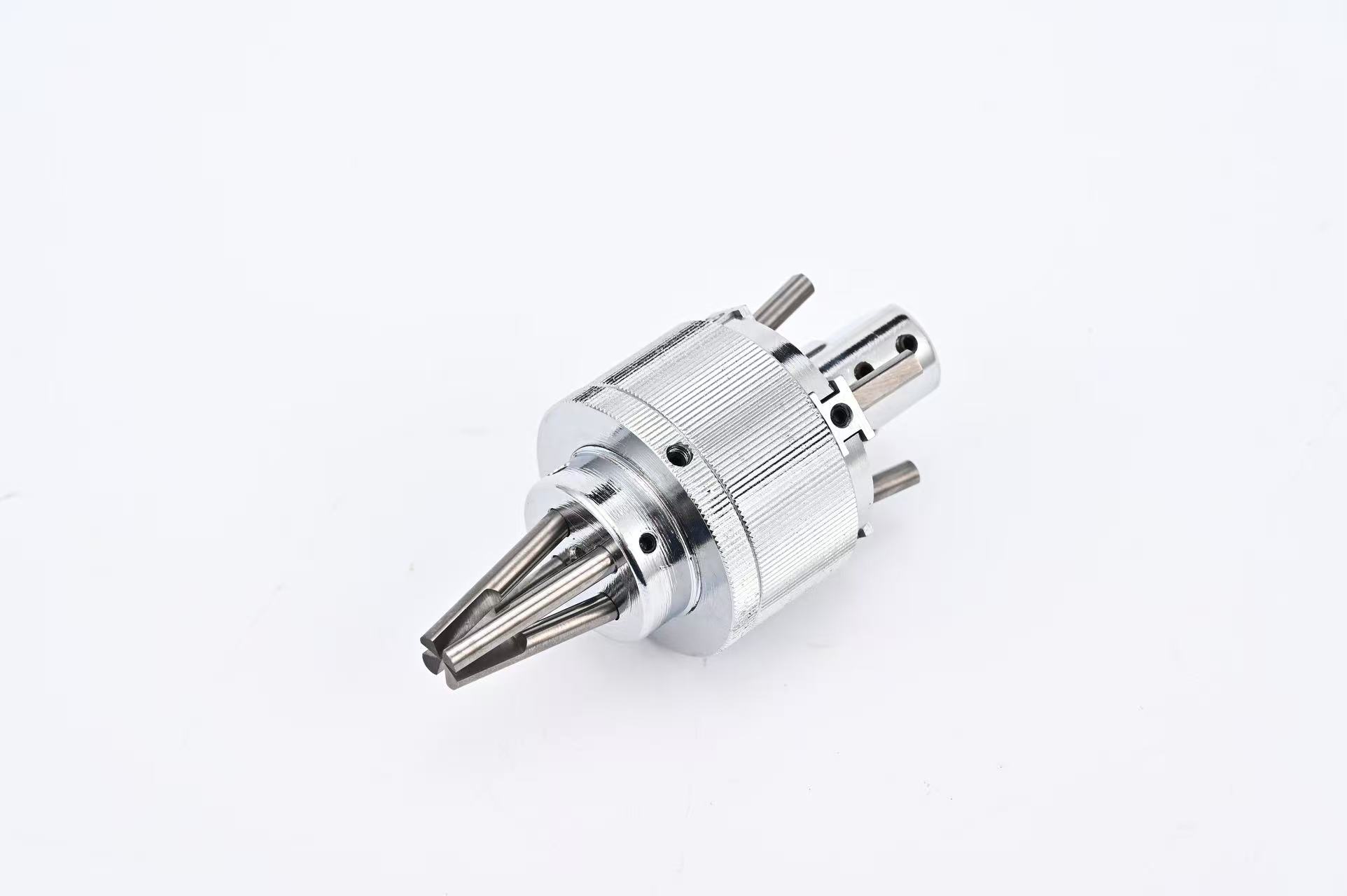

GD-6B Four-claw enameled wire paint remover

GD-6B Four-claw enameled wire stripper | The enameled wire stripper uses the latest processing technology and is uniquely designed. The tool material is made of four extra-hard tungsten alloy rods. Knife edge centripetal point cutting, taper adjustable principle. And the unique design of convenient and fast chip removal. Combined with the convenience of unloading and adjustment, and the flexible use of the safety shield, it is based on the user's thoughts and the user's urgency. The product has been trusted and praised by users in the process of being put on the market. This product solves the problem that the wire diameter is slightly bent and the one-time paint stripping is not clean during the current user's use. This product is currently an ideal product for users to trust and safety.

GD-6B enameled wire paint remover, applicable wire diameter range: about 0.35 —5mm. It can completely remove any hard insulating paint, enamel paint, ML, lsonel, etc. on the wire surface without damaging the copper wire itself. Especially suitable for use until the bottom of the coil, easy to operate and excellent results. The GD-6B four-claw paint remover is equipped with a paint stripping length termination device, which can accurately control the paint stripping length of the enameled wire. In the absence of serious pollution and hazards, the paint stripping work is fast and safe.Can be equipped with a vacuum cleaner
Specification:

Operation method: [See the instruction manual of the operation example for details]
A. Plug in the 220V/AC power supply. B. Remove the shield from the blade head part first. Adjust the scraping edge according to the required scraping wire diameter; Loosen the fixed knife edge and the headless hexagon socket screw that needs to be positioned (see the illustration of the example figure for details).
C. Turn the adjusting nut (adjust the size of the blade edge of the scraper, which is large clockwise and small counterclockwise), generally adjust the blade edge to be larger than the wire diameter of the enameled wire, then stuck the stem, take the enameled wire in one hand, adjust the adjusting nut in the other hand, there is a slight friction between the blade edge and the surface of the wire diameter of the enameled wire, and then lock all the screws to be fixed.
D. The limiting pin is adjusted and locked, and the protective cover is installed.
E. Press the power switch and the motor starts running.
F. Hold the enameled wire that needs to be scraped flat and extend into the inlet, and begin to remove the paint.

Zhongshan Risheng Hardware Products Co., Ltd. is mainly engaged in the research and development, manufacturing, and sales of enameled wire de-lacquering machines, magnetic loop coil de-lacquering machines, de-lacquering machines, copper-coated aluminum enameled wire de-lacquering machines, aluminum enameled wire de-lacquering machines, de-lacquered wire de-lacquering machines, de-lacquered leather machines, and so on.
