| Machine Model | GD-6 Enameled wire paint remover |
|---|---|
| Applicable wire diameter | 0.28－6.5mm |
| Machine Dimensions | 255 x 155 x 155mm |
| Operating Voltage | 220v/50Hz |
| Motor power | 120w |
| speed | 2800r/min |
| Machine Weight | 6kg |
| Optional accessories | Tapered Blade/Cylindrical Blade/Flat Blade |
| Stripping length | 2-70mm (can be custom lengthened) |
| Manufacturer | Risheng Hardware |
以上为标准机型数据，线径、电压及配件可按需定制，具体请联系客服确认。
GD-6 enameled wire paint remover | The enameled wire paint stripper uses the latest design of tungsten steel high-speed paint stripping blade, which can completely remove any hard insulating paint, enamel paint, ML, lsonel, etc. on the wire surface without damaging the copper wire itself. Especially suitable for cases that must be stripped right down to the coil bottom, easy to operate with excellent results. The GD-6 enameled wire paint removal machine is equipped with a paint removal length stop device that accurately controls the paint removal length of the enameled wire. Without serious pollution or hazards, the stripping work is fast and safe.Can be equipped with a vacuum cleaner
Specifications
Installation and use

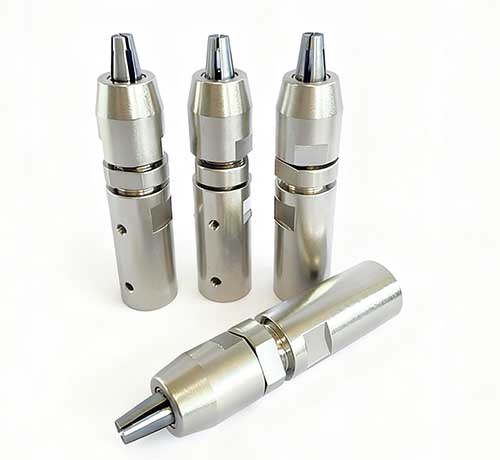

Select the appropriate knife head, install it on the chuck at the front of the machine, insert an enameled wire in the middle of the knife head, use a fixed wrench to adjust the chuck to gently clamp the enameled wire, then exit the enameled wire, after starting the switch, hold the coil part and easily push the enameled wire into the high-speed rotating knife head, straighten Until the predetermined paint length is reached, and then carefully withdraw the enameled wire, the paint stripping work can be completed. If necessary, the caliber of the blade head can be adjusted by relaxing the same tightening chuck to control the desired paint stripping effect, because when the machine is started and the blade head rotates at a high speed, the insulating paint or oxide of the enameled wire is removed, and the paint stripped enameled wire has a bright and clean surface.

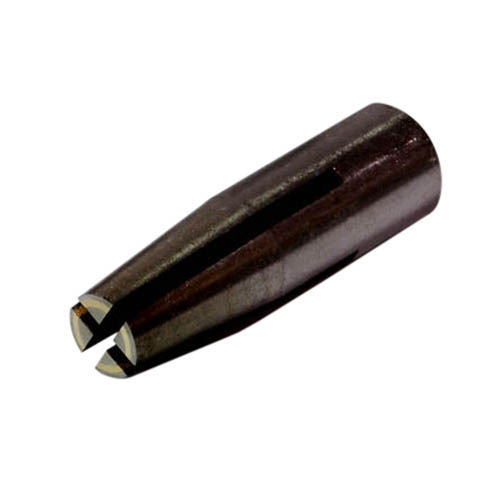

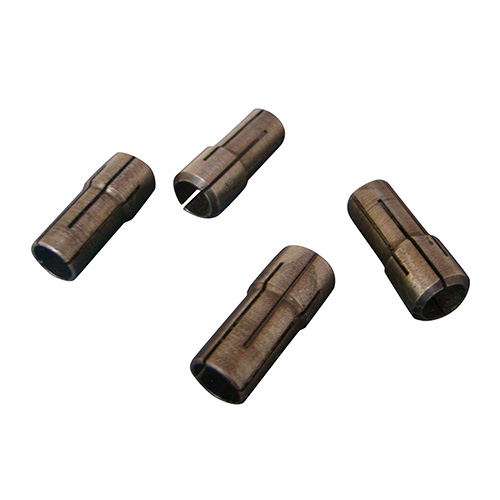

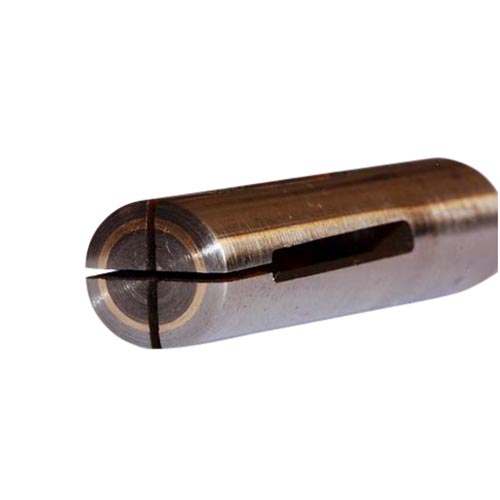

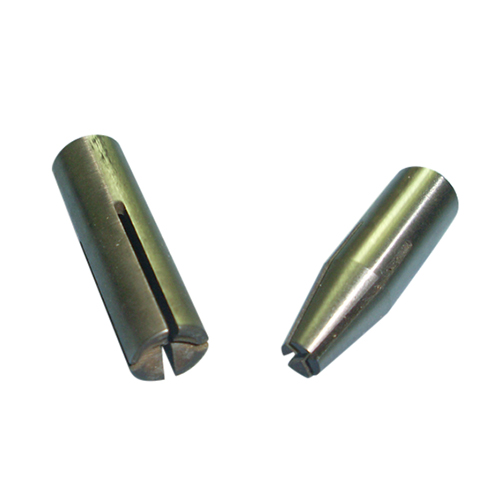

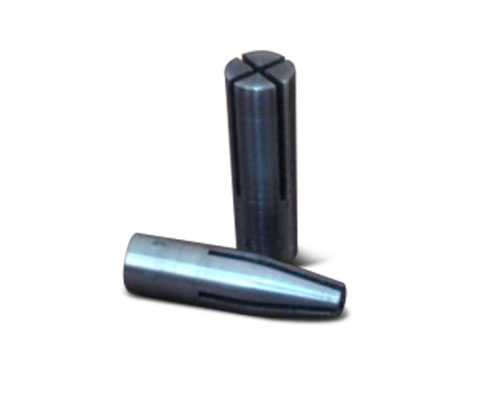

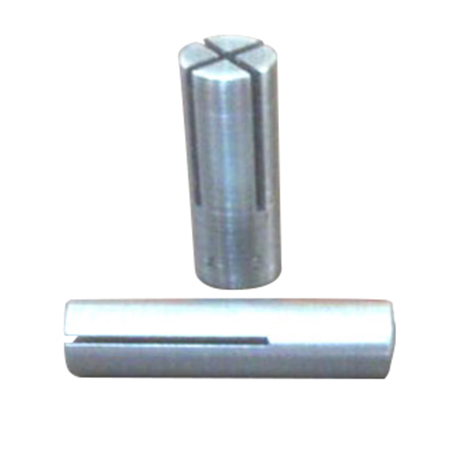

GD-6Appendix to the specifications of the blade of the paint stripper:
| Cylindrical R (flat head) model | Applicable wire diameter | Taper R (flat head) model | Applicable wire diameter |
| *0# | 0.28mm---------0.50mm | *0# | 0.28mm---------0.50mm |
| 1# | 0.51mm---------0.90mm | 1# | 0.51mm---------0.90mm |
| 2# | 0.90mm---------1.30mm | 2# | 0.90mm---------1.30mm |
| 3# | 1.30mm---------1.60mm | 3# | 1.30mm---------1.60mm |
| 4# | 1.60mm---------1.90mm | 4# | 1.60mm---------1.90mm |
| *5# | 1.90mm---------2.30mm | *5# | 1.90mm---------2.30mm |
| *6# | 2.30mm---------2.60mm | *6# | 2.30mm---------2.60mm |
| *7# | 2.60mm---------2.90mm | *7# | 2.60mm---------2.90mm |
| *8# | 2.90mm---------3.20mm | *8# | 2.90mm---------3.20mm |
| *9# | 3.20mm---------3.60mm | *9# | 3.20mm---------3.60mm |
| *10# | 3.60mm---------3.90mm | *10# | 0mm---------0mm |
| *11# | 3.90mm---------4.20mm | *11# | 0mm---------0mm |
| *12# | 4.20mm---------4.50mm | *12# | 0mm---------0mm |
| *13# | 4.50mm---------4.80mm | *13# | 0mm---------0mm |
| *14# | 4.80mm---------5.20mm | *14# | 0mm---------0mm |
Zhongshan Risheng Hardware Products Co., Ltd. is mainly engaged in the research and development, manufacturing, and sales of enameled wire de-lacquering machines, magnetic loop coil de-lacquering machines, de-lacquering machines, copper-coated aluminum enameled wire de-lacquering machines, aluminum enameled wire de-lacquering machines, de-lacquered wire de-lacquering machines, de-lacquered leather machines, and so on.
