Zhongshan Risheng Stripping Equipment Parts
Professional manufacturer of enameled wire stripping machines - paint removal machines - stripping consumables
Best sellers
1 / 6
| Machine Model | GD-1 new |
|---|---|
| Applicable wire diameter | 0．08－3．81mm |
| Machine Dimensions | 480x305x265mm |
| Operating Voltage | 220v/50Hz or 380v/50Hz |
| Motor power | 370W-750w |
| speed | 3330r/min |
| Machine Weight | 23-28kg |
| Optional accessories | Nylon or Wire Wheels |
| Belt size | 730x30x2mm |
| Stripping length | 3mm - Infinite |
以上为标准机型数据，线径、电压及配件可按需定制，具体请联系客服确认。
GD-1 desktop enameled wire stripping machine | enameled wire stripping machine, a unique design of "full contact" high-speed grinding wheel, can automatically adjust the curvature of the wire body, can completely remove any hard insulating paint on the wire surface, without damaging the copper wire itself. In the absence of serious pollution and hazards, the paint stripping work is fast and safe.Suitable wire diameter range: 0.10mm—3.8mm or more, (adjusting device has been improved) Suitable for circular and square lines, and can handle multiple enameled wires at the same time.Easy to operate and excellent results.Can be equipped with a vacuum cleaner
GD-1 enameled wire stripper specifications:

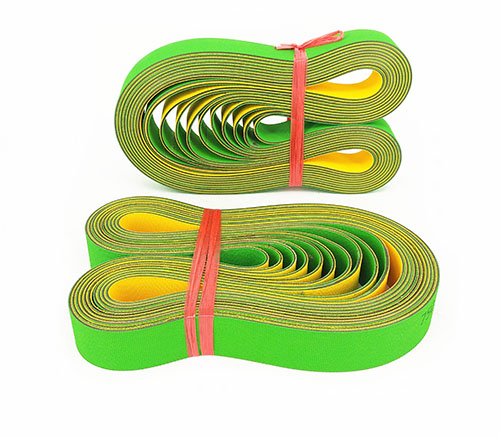

Related Products Special belt for car rotor Enameled wire stripping machine parts Enameled wire paint removal machine belt Interfaceless continuous enameled wire stripping machine belt Enameled wire paint removal blade | stripping blade
Customers are welcome to sample test and paint stripping products customization!Welcome to sample test and peeling paint product customization ! Your browser does not support HTML5 video tags.
