Zhongshan Risheng Stripping Equipment Parts
Professional manufacturer of enameled wire stripping machines - paint removal machines - stripping consumables
1 / 4
The German "ABISOFIX" portable electric high-speed enameled wire paint removal machine completely removes any hard insulating varnish from enameled wire without ever damaging the copper wire itself. Operation is quick and easy and results are outstanding. It is designed for the transformer, coil, electrical appliance, motor repair and generator industries, with several models available for enameled wire diameters from 0.2 - 4.5mm. To improve product quality and production efficiency and thus increase profits, you are welcome to use the German "ABISOFIX" enameled wire paint removal machine.
Specifications:
Applicable wire diameter AWG 32 - 5 (0.2 - 4.5mm?)
Machine dimensions 180 x 45 mm
Machine Voltage 6 - 40 VDC
Machine Weight 450g
Control box voltage 220V/50Hz. AC
Control box weight 1 kg
How it works:
Portable electric enameled wire stripping machine, equipped with three hard alloy blades, with a moving blade device, when the motor rotates at high speed, the blade is driven by centrifugal force and merged at the same time, finely cutting the insulating paint on the surface of the enameled wire without damaging the copper wire itself. By adjusting the stepless transmission of the control box, it can be applied to wire diameters of different sizes, quickly applied to thick lines, and slowly applied to thin lines.
Operation Instructions
Put the enameled wire into the knife head first, then tap the motor micro switch and exit the enameled wire to complete
Paint stripping work. By adjusting the speed of the blade through the transmission, the optimal cutting and paint stripping effect can be controlled.
Technical data:
No. 1 Blade (Applicable wire diameter range: 0.2mm – 0.8mm diameter)
No. 3 cutter head (applicable wire diameter range: 0.6mm – 2.0mm diameter)
No. 5 Blade (Applicable wire diameter range: 1.2mm – 4.5mm diameter)
Zhongshan Risheng Hardware Products Co., Ltd. sells hand-held paint strippers, hand-held paint strippers, hand-held paint scrapers, hand-held paint strippers and other products.

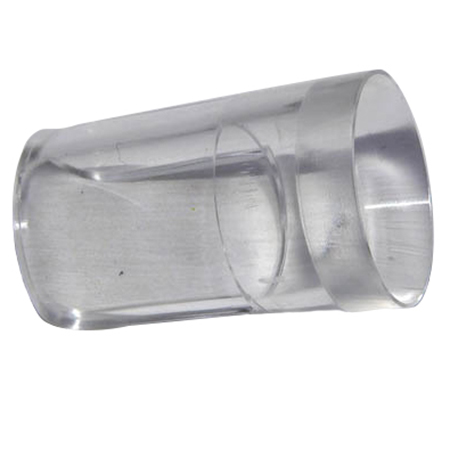

Related Products ABISOFIX Portable Paint Removal Machine Housing
