GD-3B Flat Enameled Wire Grinding Machine

The GD-3B flat enameled wire grinding machine includes a mechanical drive and also two stripping wheels, a first and a second stripping wheel, each driven by the mechanical drive. The surfaces of the two stripping wheels are rough and the flat enameled copper wire is fed into the gap between them. The advantage is that, as the flat enameled copper wire passes through the gap, both sides of the wire are rubbed by the rough surfaces of the first and second stripping wheels rotating at high speed, and theEnameled flat copper wireThe removal of paint greatly improves work efficiency, eliminates the need for chemical reagents in traditional processes, avoids damage to the human body or the environment, and avoids the corrosive effect of chemical reagents on the copper wire body, improving product quality.Can be equipped with a vacuum cleaner

SpecificationsGrid

Installation and Use
Select the appropriate paint stripping wheel, install it on the machine, place the enameled wire in the middle of the two paint stripping wheels, adjust the two paint stripping wheels until the enameled wire is gently clamped, hold the coil part with your hand and start the switch to test the paint stripping effect, which can be adjustedThe paint stripping wheelThe pressure of the contact surfaces with each other is controlled to achieve the desired paint stripping effect.
When working, the enameled wire is placed in the middle between the paint stripping wheels, and then the enameled wire is easily pulled out from the paint stripping wheels, and the paint stripping work is completed, because when the machine is working, the high-speed rotation of the paint stripping wheels grinds off the insulating paint or oxide of the enameled wire, and the paint stripped enameled wire has a bright and clean surface.

GD-3BMulti-strand enameled wire grinderCan be stripped paint wire diameter such as: about 0.30 mm more than 600 heads. While perfecting the machine products, the supporting products also need to keep up. However, it should be noted that different manufacturers have different products. Inevitably, there is a big problem of tension in the process of operation. The wire diameter is thicker, and there are more thread heads. The next consideration is to cooperate with the manufacturer to further improve the supporting fixture. Cooperate with the technical staff of the manufacturer to jointly develop the operation process.

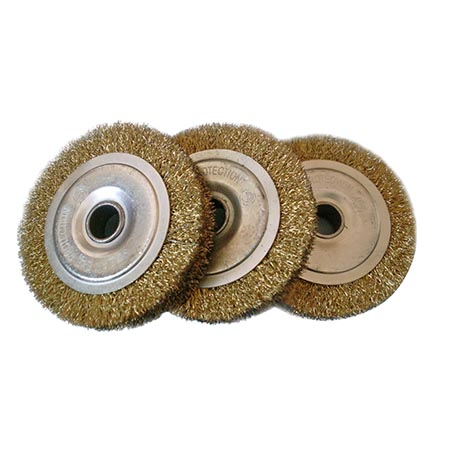

When you need to replace the paint stripping wheel, simply pull the paint stripping wheel that can no longer be used from the shaft and insert a new paint stripping wheel to start working again.

Zhongshan Risheng Hardware Products Co., Ltd. mainly focuses on the production of flat enameled wire grinding leather machines, enameled wire grinders, multi-strand wire grinders, aluminum enameled wire grinders, paint grinders, enameled wire grinders, paint leather grinders, wire grinders, enameled wire grinders, paint leather grinders, and so on.
