GD-3A Flat Enameled Wire Stripping Machine

The GD-3A flat enameled wire stripping machine includes a mechanical drive and also two stripping wheels, a first and a second stripping wheel, each driven by the mechanical drive. The surfaces of the two stripping wheels are rough and the flat enameled copper wire is fed into the gap between them. The advantage is thatEnameled flat copper wireExtending into the gap between the first peeling wheel and the second peeling wheel, the first peeling wheel and the second peeling wheel with a rough surface are subjected to high-speed rotation of the mechanical transmission device. Both sides of the flattened copper wire are rubbed by the rough surface and the paint on the enamelled flat copper wire is removed, which greatly improves the work efficiency. It eliminates the chemical potion required in the traditional process, avoids damage to the human body or the environment, and avoids the corrosive effect of the chemical potion on the copper wire body, and improves the quality of the product.Can be equipped with a vacuum cleaner

SpecificationsGrid

Installation and Use
Select the appropriate paint stripping wheel, install it on the machine, place the enameled wire in the middle of the two paint stripping wheels, adjust the two paint stripping wheels until the enameled wire is gently clamped, hold the coil part by hand and then start the switch to test the paint stripping effect. The pressure of the contact surface between the paint stripping wheels can be adjusted to control the desired paint stripping effect.
When working, the enameled wire is placed in the middle between the paint stripping wheels, and then the enameled wire is easily pulled out from the paint stripping wheels, and the paint stripping work is completed, because when the machine is working, the high-speed rotation of the paint stripping wheels grinds off the insulating paint or oxide of the enameled wire, and the paint stripped enameled wire has a bright and clean surface.

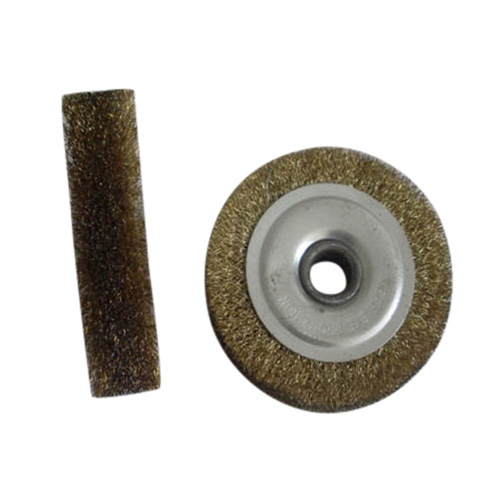

When you need to replace the paint stripping wheel, simply pull the paint stripping wheel that can no longer be used from the shaft and insert a new paint stripping wheel to start working again.

Zhongshan Risheng Hardware Products Co., Ltd. is mainly engaged in the research and development, manufacturing and sales ofFlat Enameled Wire De-patterning Leather Machine, enameled wire de-painting machine, multi-strand wire de-painting machine, enameled wire de-painting leather machine sales, de-painting machine production, enameled wire de-painting leather machine, de-painting leather machine production and so on.
