GD-2 flat wire paint stripper

The GD-2 flat wire stripping machine features a newly designed "full-contact" high-speed special stripping wire wheel that automatically adapts to the curvature of the wire and completely removes any hard insulating varnish, enamel varnish, ML, lsonel and similar coatings from the wire surface without ever damaging the copper (aluminium) wire itself. In the absence of serious pollution and hazards, the paint stripping work is fast and safe.Suitable wire diameter range: 0.12 m-10mm, suitable for circular and square wires, most suitable for flat wire paint removal 1mm * 45mm, multi-strand enameled wire paint removal, induction cooker coil disc paint removal.Easy to operate and excellent results.Product Remarks:Can be equipped with a vacuum cleaner

Specifications

Installation and Use
Select the appropriate paint stripping wheel, install it on the machine, place the enameled wire in the middle of the two paint stripping wheels, adjust the two paint stripping wheels until the enameled wire is gently clamped, hold the coil part by hand and then start the switch to test the paint stripping effect. The pressure of the contact surface between the paint stripping wheels can be adjusted to control the desired paint stripping effect.
When working, the enameled wire is placed in the middle between the two stripping wheels, and then the enameled wire is easily pulled out from between the stripping wheels, and the stripping work is completed, because when the machine is working, the stripping wheel rotates at a high speed to grind off the insulating paint or oxide of the enameled wire, and the stripped enameled wire has a bright and clean surface.

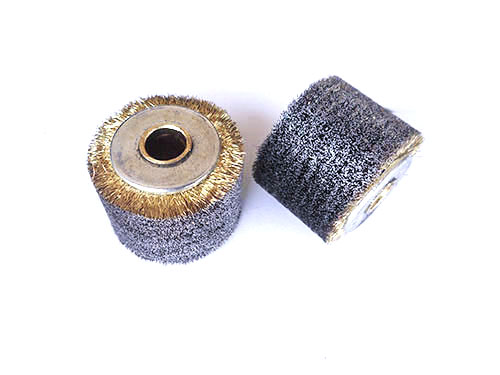

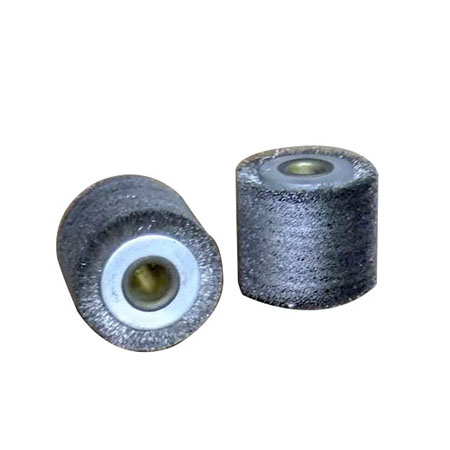

When you need to replace the paint stripping wheel, simply pull the paint stripping wheel that can no longer be used from the shaft and insert a new paint stripping wheel to start working again. (Pay attention to the directionality of the wire wheel when installing the wire stripping wheel)
