GD-1 Flat wire paint grinder

The "full contact" high-speed grinding wheel designed by the GD-1 flat wire paint grinder can automatically adjust the curvature of the wire body and completely remove any hard insulating paint on the wire surface without damaging the copper wire itself. Without serious pollution or hazards, stripping is fast and safe. The GD-1 flat wire grinding machine is suitable for wire diameters of 0.08mm-3.8mm and above (the adjustment device has been improved); it handles round and square wire and can process several strands of enameled wire at the same time. Easy to operate with excellent results. Dual-handle adjustment gives higher precision.Can be equipped with a vacuum cleaner

Installation and use:

Install a suitable grinding wheel on the machine, place one or more enameled wires in the middle of the two grinding wheels, adjust the two grinding wheels until the enameled wires are gently clamped, hold the coil part by hand and then start the switch to test the stripping (stripping) paint effect. The desired stripping (stripping) paint effect can be controlled by adjusting the pressure of the contact surfaces of the grinding wheels with each other. When working, place the enameled wire between the two grinding wheels, and then easily pull the enameled wire out from between the grinding wheels, the paint removal work is completed. The surface of the stripped (stripped) enameled wire is bright and clean.
Product Description:
The machine can be stripped of paint wire diameter, such as: about 0.30 mm, about 30 heads. While perfecting the machine products, the supporting products also need to keep up. However, it should be noted that different manufacturers have different products. Inevitably, there is a big problem of tension in the process of operation. The wire diameter is thicker, and there are more thread heads. The next consideration is to cooperate with the manufacturer to further improve the supporting fixture. Cooperate with the technical staff of the manufacturer to jointly develop the operation process.

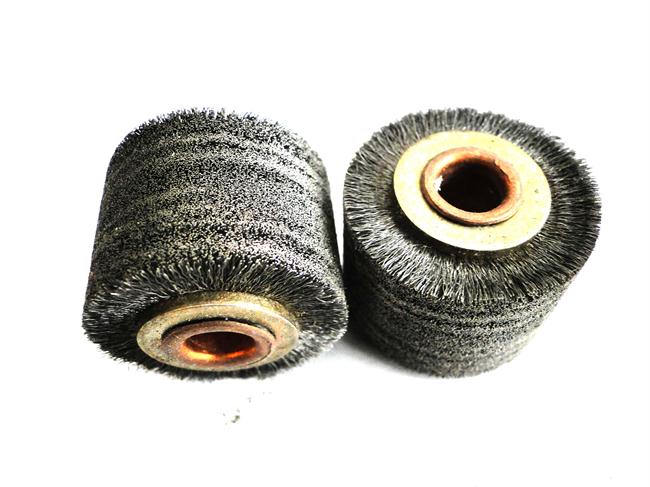

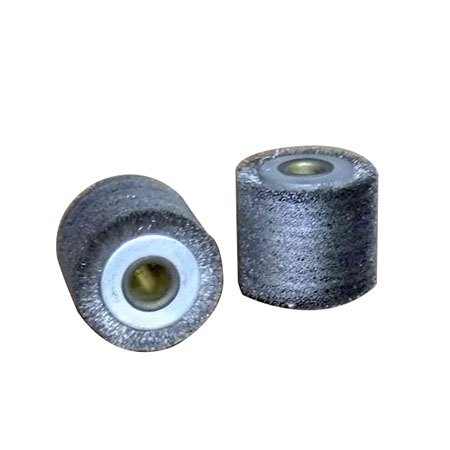

In addition to using steel wire wheels, this machine can also select suitable paint stripping fiber wheels. The first step is to level the parallelism between the two rounds. The specific method is to adjust the gap between the two wheels according to the size of the special mesh sand skin, start the power supply, and repair the flatness of the two wheels with the mesh sand skin. At the same time, the adjustment device should also be carried out in conjunction. The leveled wheels are ready to work.

Zhongshan Risheng Hardware Products Co., Ltd. mainly focuses on the research and development, manufacturing, and sales of flat wire paint grinders, enameled wire paint grinders, multi-strand wire paint grinders, leather grinders, aluminum enameled wire paint grinders, paint grinders, paint grinders, enameled wire grinders, and so on.
