GD-1 Flat wire paint remover

The "full-contact" high-speed grinding wheel designed by the GD-1 desktop flat wire paint stripper can automatically adjust the curvature of the wire body and completely remove any hard insulating paint on the wire surface without damaging the copper wire itself. In the absence of serious pollution and hazards, the paint stripping work is fast and safe.Suitable wire diameter range: 0.10mm—3.8mm or more, (adjusting device has been improved) Suitable for circular and square lines, and can handle multiple enameled wires at the same time.Easy to operate and excellent results.Can be equipped with a vacuum cleaner

GD-1 Enameled wire stripper specifications：

  Installation and use:
Install a suitable grinding wheel on the machine, place one or more enameled wires in the middle of the two grinding wheels, adjust the two grinding wheels until the enameled wires are gently clamped, hold the coil part by hand and then start the switch to test the stripping (stripping) paint effect. The desired stripping (stripping) paint effect can be controlled by adjusting the pressure of the contact surfaces of the grinding wheels with each other. When working, place the enameled wire between the two grinding wheels, and then easily pull the enameled wire out from between the grinding wheels, the paint removal work is completed. Enameled wire after stripping (peeling off) paint, copper wire surface is bright and clean

The GD-1 enameled wire stripper can strip 30 heads of wire diameter such as 0.30 mm. While perfecting the machine products, the supporting products also need to keep up. However, it should be noted that different manufacturers have different products. Inevitably, there is a big problem of tension in the process of operation. The wire diameter is thicker, and there are more thread heads. The next consideration is to cooperate with the manufacturer to further improve the supporting fixture. Cooperate with the technical staff of the manufacturer to jointly develop the operation process.

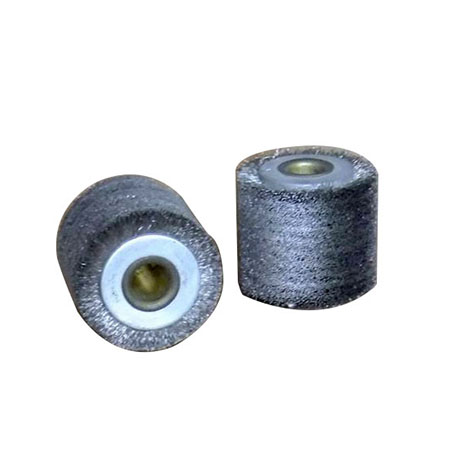

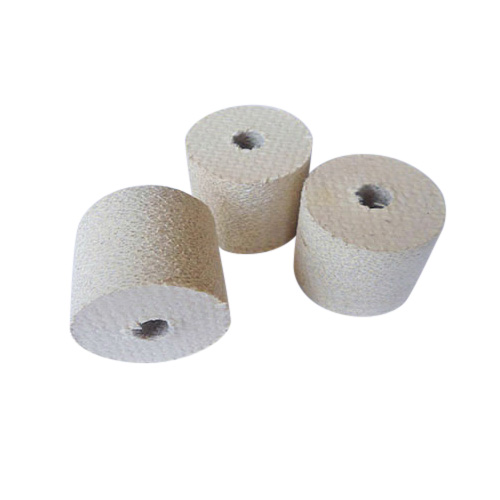

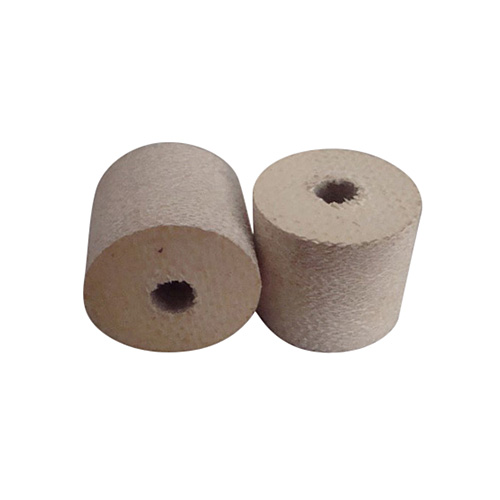

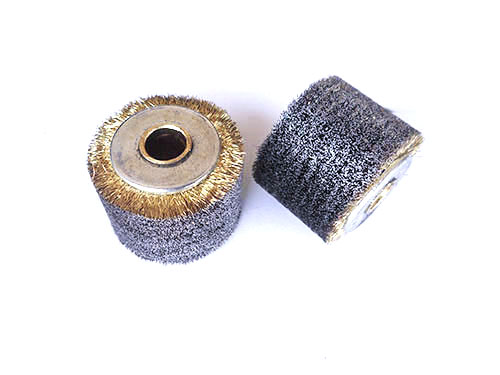

In addition to using steel wire wheels, this machine can also select suitable paint stripping fiber wheels. The first step is to level the parallelism between the two rounds. The specific method is to adjust the gap between the two wheels according to the size of the special mesh sand skin, start the power supply, and repair the flatness of the two wheels with the mesh sand skin. At the same time, the adjustment device should also be carried out in conjunction. The leveled wheels are ready to work. Suitable for stripping wire diameter: 0.1—0.93mm range. Thin wires can be multi-stranded and are widely used in copper (aluminum) wires and copper-clad aluminum wires. The painted surface is bright, and the copper (aluminum) wire or copper-clad aluminum wire itself is absolutely harmless. The majority of users can use it with confidence and boldness according to their choice.

Zhongshan Risheng Hardware Products Co., Ltd. mainly integrates R&D, manufacturing and sales of flat wire paint stripping machines, enameled wire paint stripping machines, multi-strand wire paint stripping machines, aluminum enameled wire paint stripping machines, paint stripping machines, flat wire peeling machine production, enameled wire peeling leather machine, peeling leather machine production and so on.
