Zhongshan Risheng Stripping Equipment Parts
Professional manufacturer of enameled wire stripping machines - paint removal machines - stripping consumables
1 / 5
| Product Brief | |

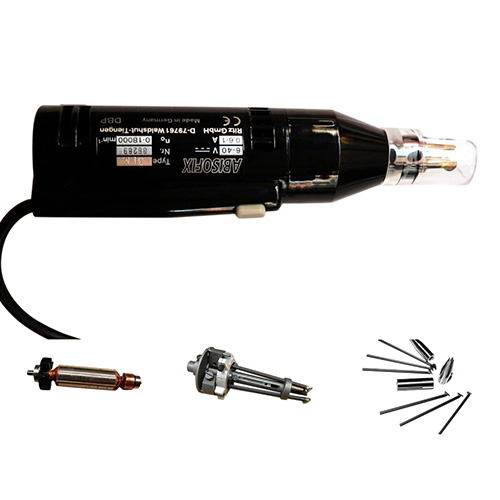

| Germany Arno Fuchs Arno Fuchs ABISOFIX handheld electric high-speed peeling machine, using DC high-speed coreless motor design, up to 20,000RPM, and has immediate stop braking performance, its function is very powerful, is a multi-functional multi-purpose high-performance peeler, can completely remove any hard insulation layer on a variety of wires on the market, without damaging the wires themselves.It is quick and easy to operate, and the effect is excellent.It is specially designed for the manufacture of transformers and coil electrical appliances for use with repair motors, generators and other industries, and has up to 9 functions. 22 types of blades can be selected, and can be converted into more applications by simply replacing the blade. Applicable wire diameters range from 0.2 - 4.5 mmø.The square pitch surface flat line reaches 35mm to increase profits in order to improve product quality and production efficiency, welcome to use the German "Arnold Fox" peeling machinel Pull-out/scrape-off peeling method, straightforward and easy to operate.l High-carbon tungsten-molybdenum alloy/diamond blade for long-lasting durability.l High-speed DC motor, stepless adjustable from 0-20000RPM control power supplyl From 0.2-4.5mm, peel length up to 70mm, peelable to the bottom of the coill The handle is lightweight, powerful, and can be used for a variety of purposes by simply replacing the blade | |
| Use of equipment | |

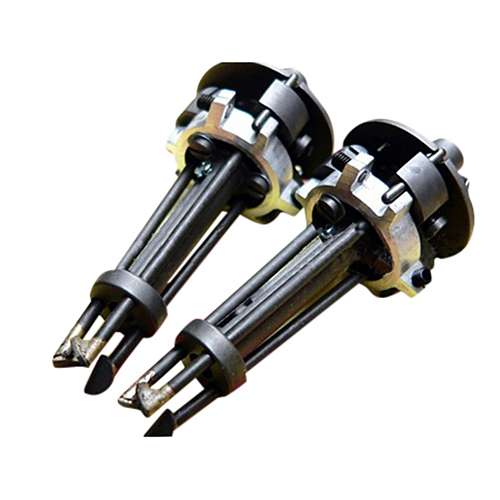

| How it works:The ABISOFIX handheld peeler is equipped with three hard alloy blades, which are combined with a movable centrifugal blade device. When the motor rotates at high speed, the blades are driven by centrifugal force and merged at the same time, finely cutting the insulation layer on the surface of the wire without damaging the copper wire itself. By adjusting the stepless transmission of the control box, it can be applied to different sizes of wire diameters, fast for thick wires, and slow for thin wires.InstructionsPut the enameled wire into the blade, then tap the motor micro switch and eject the enameled wire to complete the peeling work. Adjust the speed of the blade through the transmission to control optimal cutting and paint removal. | |
| Optional Supply Categories | |||||
| Standard model blade | |||||
| The standard knife head is the standard model of the peeler, peeling off the enameled wire and braided wire, and can also peel off the cutting and installation sleeve; Maximum peel length is 70mm | A1 | MK1 | 0.2mm-0.8mm | ||
| A3 | MK2 | 0.6mm-2.0mm | |||
| A5 | MK5 | 1.2mm-4.5mm | |||
| Limit Blade | |||||
| Removal of enameled textile threads, oxidized glazes, etc.The "L" with length limit device means that the peeling length can be adjusted from 3mm-40mm. If you need to peel off the longer limit device, you need to remove it; The "M" adjustable tool position ring with a maximum length of up to 70mm cutter head limit position can be used for the outermost insulation layer of the special wire gauge multi-layer insulation layer without damaging the inner wire paint layer. | Handpiece model | Blade Model | Applicable wire diameter ø | ||
| A1LM | MK5LM | 1.2mm-4.5mm | |||
| Special Blade | |||||
| In special applications, especially the pins of electronic components such as inductive capacitors, they may need to be peeled off to the bottom of the component, at a distance of 0 mm, to start peeling off the insulating layer at the bottom of the component. | Handpiece model | Blade Model | Applicable wire diameter ø | ||
| AS | MKS | 0.4mm-3.0mm | |||
| Flat blade | |||||
| The flat blade is applied to the stripping of thicker insulation layers such as cables and wires PVC, braided wire, etc., and can also be applied to the sleeve of multi-stranded wires with a length limit device, up to 70mm stripping near the bottom of the product 2mm | Handpiece model | Blade Model | Applicable wire diameter ø | ||
| AFLM3 | MK3FLM | 0.6mm-4.0mm | |||
| AFLM5 | MK5FLM | 2.0mm-5.0mm | |||
| Small dissolved head | |||||
| The small dissolution head is mainly used for cleaning the stripping and varnishing or welding metal wiring pins, and correcting the welding circuit board connection pins.Peel range and pin minimum distance 5mm (conditional 4mm)Peel length Minimum 0.5mm Maximum 30mm.MAXThe diameter of the stripped wire can be fine-tuned | Handpiece model | Blade Model | Applicable wire diameter ø | ||
| AK1 | KMK1 | 0.5mm | |||
| AK2 | KMK2 | 0.6mm | |||
| AK3 | KMK3 | 0.7mm | |||
| AK4 | KMK4 | 0.8mm | |||
| AK5 | KMK5 | 0.9mm | |||
| AK6 | KMK6 | 1.0mm | |||
| AK7 | KMK7 | 1.1mm | |||
| AK8 | KMK8 | 1.2mm | |||
| Rectangular Face Blade | |||||
| For the knife milling of copper flat bars and copper strip enameled wires, the insulation layer can be removed with only a slight amount of pressure after reaching the correct speed.When the copper flat or copper strip is larger than 18mm, it can be operated on both sides, and the diamond blade has extremely abrasion resistance, which is simple and efficient. | Handpiece model | Blade Model | |||
| AF | MKF | ||||
| Stranded tip | |||||
| In order to twist a single strand or a plurality of strands of strands that need to be twisted, the strands are neatly twisted together at both ends of the pre-stripped strand;The carbide twisted needle on the blade can automatically adjust the size of the wire by centrifugal force. Simply insert the multi-stranded wire into the blade, turn it on and withdraw to complete the twisting work. | Handpiece model | Blade Model | Applicable wire diameter ø | ||
| AV3 | MKV3 | 0.2mm-2.5mm | |||
| AV5 | MKV5 | 2.5mm-6.0mm | |||
| Cable distortion | |||||
| To require the crimping of two or more wires, it is common for twisted strandsHook two or more wires that need to be twisted, start the motor, and straighten to complete the crimping workThicker wires use slower speeds, thinner wires use higher speeds | Handpiece model | Blade Model | Applicable wire diameter ø | ||
| AVH | VH | Bis 0.6mm | |||
| Power Adapter | |||||
| The power adapter provides DC power to the peeler with overload protection and ballast filtering;The 40V power supply provided is constant voltage, regulated by a resistive type, and the voltage is infinitely adjustable | Model | Specifications | |||
| NE421 | 230V 50Hz AC/10-40V DC | ||||
| NE42B | 110V 60Hz AC / 10-40V DC | ||||
| Domestic Adapters | |||||
| The domestic power adapter provides DC power for the peeler with overload protection and dual ballast filtering; With a fixed voltage output of 16 gears, output from 10V-40V DC, choke current of 1.75 V per gear, the output voltage is more stable and durable | Model | Specifications | |||
| DBP-9761 | 110V 60Hz AC / 10-40V DC | ||||
| DBP-9762 | 230V 50Hz AC/10-40V DC | ||||
| Table holder&Foot pedal | |||||
| It needs to be used on a workstation in the application, the peeler can be fixed on a workbench, the hand holding the peeler can be released, and a fool switch is used when switching and shutting down the equipment. | Model | ||||
| ATP | |||||

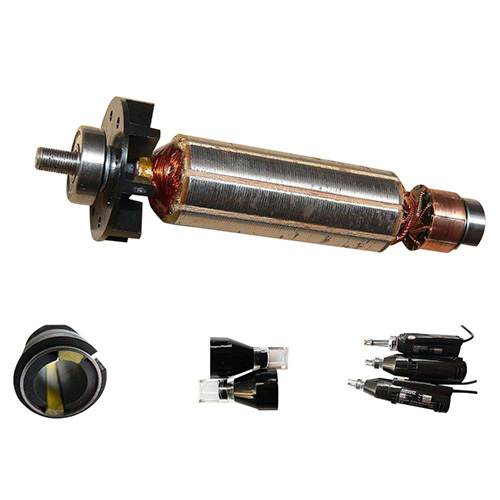

| Handpiece Motor | |||||
| There are two versions of the peeling machine motor, the AMO version is suitable for all peeling knife heads, the peeling head and the tool are interchangeable, the ADBW version is hollow shaft type, intermittent peeling can cut the wire in different circumstances to achieve the faucet length to infinity; | Model | Specifications | |||
| AMO | Handheld peeler motor | ||||
| ADBW | Hollow shaft plate maximum diameter 2.8mm | ||||
| Optional accessories | |||

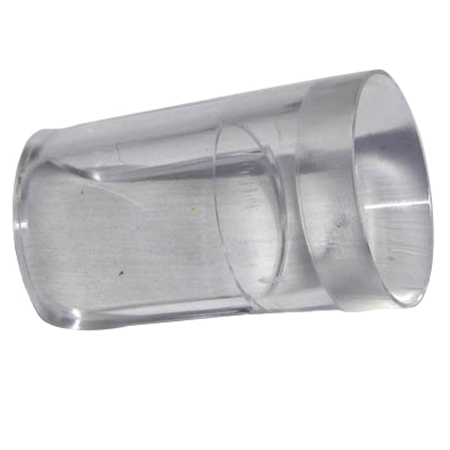

| SHP Dust Cover (Acrylic) | KA front case | KO High Speed Motorized Carbon Brush | SCHA2 Silver Touch Tact Switch |
| MES Head Stripping Blade | DCF Stripper Blade | Mesh peeling blade | MESF Peeler Blade |
| Number of Techniques | |
| Applicable line diameter range: | 32-5 AWG（0.2mm-4.5mmø） |
| Machine size: | 180 × 45mm (L × W) |
| Machine weight: | 450gs |
| Control box voltage: | 230V/50Hz or 110V 60Hz AC input/10-40V DC output |
| Machine speed: | 0-20 000 R.P.M |
| Control box weight: | 1000gs |
