Zhongshan Risheng Stripping Equipment Parts
Professional manufacturer of enameled wire stripping machines - paint removal machines - stripping consumables
1 / 5
| Machine Model | M10 |
|---|---|
| Applicable wire diameter | 0.15 mm -6.35mm |
| Machine Dimensions | 72x114x114mm |
| Operating Voltage | 220v/50Hz |
| Motor power | 30w |
| Operating Temperature | 149℃~843℃ |
| Machine Weight | 6．8kg |
| Optional accessories | Thermal knife |
| Stripping length | 3mm - Infinite |
| Brand | MEISEIHOTweezers |
以上为标准机型数据，线径、电压及配件可按需定制，具体请联系客服确认。

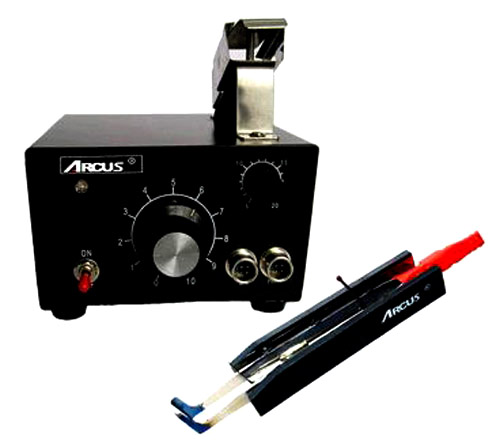

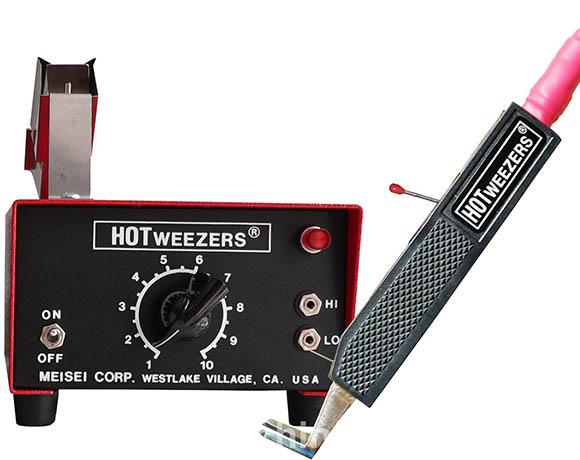

The M10 wire hot stripping knife adopts the latest design of our company, and is widely used in fine operation occasions such as cutting, hot stripping, hot shoveling, and hot scraping. Suitable for hot stripping of wires with very small wire diameters (minimum unlimited) or very large wires (maximum 6.35 mm). Conductors with a wire diameter greater than 6.35 mm can be processed with the new HOTNIFE. The built-in heating element is fully sealed inside the blade head. Temperature range: 149°C-843°C adjustable. It effectively removes various materials, greatly improving thermal efficiency, reducing power consumption, preventing oxidation and eliminating maintenance. Flexible, adjustable stripping-length stop for accurate control of the stripping length of enameled wire.
Specification:

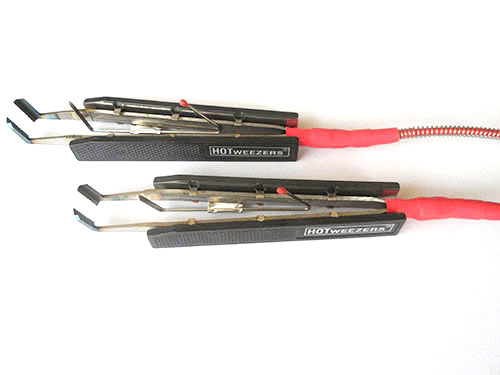

Handle Specifications:
4Aф 0.15 mm ~ ф 0.61 mm wire diameter conductor
4Bф 0.38 mm ~ ф 1.22 mm wire diameter conductor
4C flat blade maximum wire diameter ф6.3mm
Zhongshan Risheng Hardware Products Co., Ltd. sells wire heat stripper power supply, M10 wire heat stripper power supply, electrothermal stripper, wire heat stripper handle, three-layer insulated wire heat stripper, MEISEI-HOTWEEZERS electrothermal wire stripper, electrothermal peeler, peeler sales, electrothermal peeler, peeler production, wire heat stripper, heat stripper handle, enameled wire peeler, wire peeler, electrothermal peeler and other products.
