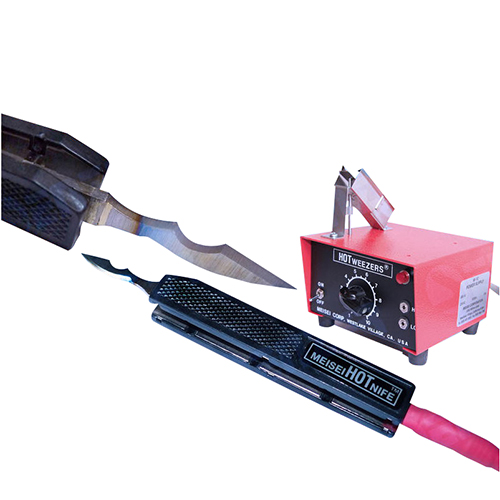

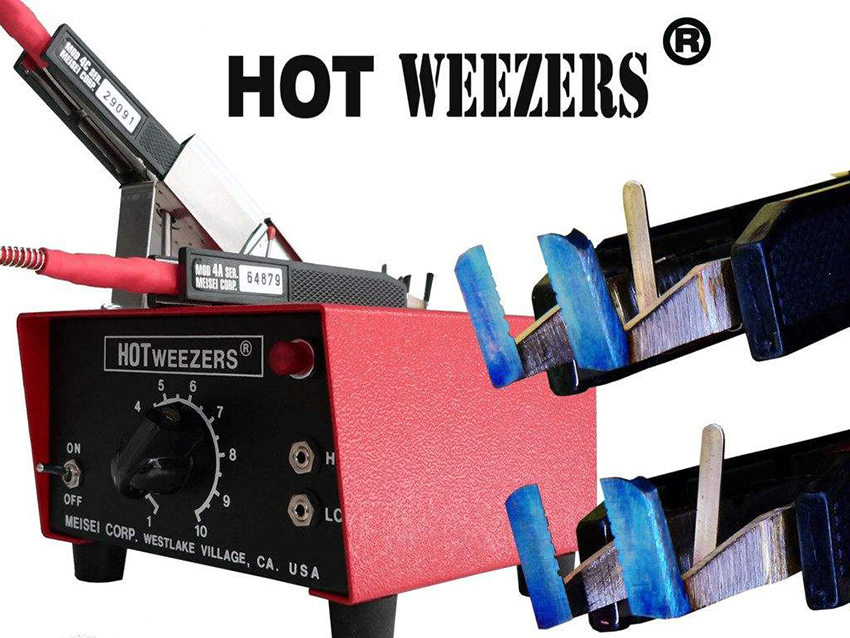

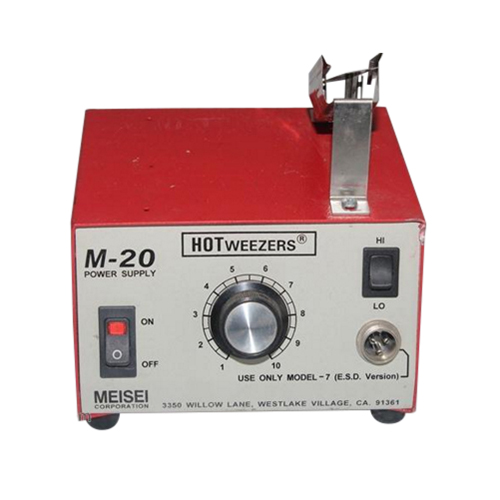

M10 three-layer insulated wire heat stripper

1. Adjustable temperature control; stripping head temperature range up to 149C-788C, quickly melting and pulling off the insulation layer without burning or sticking

2. Can strip various low-temperature insulator materials, such as: PVC, Nylon, Polyethylene

3. Can strip various high temperature insulator materials such as: Tefzel, Teflon, Silicone Rubber

4. The new type of safety bracket effectively fixes the handle to prevent falling and scalding the human body. * The built-in light touch switch automatically converts the stripper temperature into two states: preheating and operation, improving safety performance and extending the life of the stripper

5. "HI" and "LO" two safe low-voltage power supply output holes to define different stripper temperature ranges

6. Dimensions: 7.2cm (H) x 11.4cm (W) x 11.4cm (D)

7. Power supply: 220W 50/60Hz 33W

8. All safety standards are compliant with U.S. Aerospace Industry Use Standards

Feature Description:

1.4A, 4B two different aperture head cutting edges to meet the requirements of different wire diameters, so that the operation is simple, no need to turn the handle 180 degrees, and the end is flat, without damaging the core wire

2.4C flat blade for hot stripping of extremely small (minimum unlimited) or very large (maximum 6.35 mm) wires. Conductors with a wire diameter greater than 6.35 mm can be treated with a new type of thermal cutter

3. The built-in heating wire completely seals the blade head, which can greatly improve the thermal efficiency, reduce power consumption, prevent oxidation, and eliminate maintenance.

4. High-strength iron-nickel alloy blade with high temperature resistance, wear resistance, oxidation resistance, and resistance to deformation

5 Closed-loop temperature control improves temperature stability and avoids excessively low or high temperatures

6. Flexible adjustable stripper length limit, use a batch of products stripper length uniformity

7. The lightweight handle weighs only 57g, making the operation lightweight and flexible, easy to extend into the chassis, effectively improving work efficiency and reducing operator fatigue.

Handle Specifications:

4Aф 0.15 mm ~ ф 0.61 mm wire diameter conductor

4Bф 0.38 mm ~ ф 1.22 mm wire diameter conductor

4C flat blade maximum wire diameter ф6.3mm

Zhongshan Risheng Hardware Products Co., Ltd. sells electric strippers, wire heat stripper handles, three-layer insulated wire heat strippers, heat stripper handles, enameled wire paint strippers, wire strippers, electric heat strippers and other products.
