GD-4 Insulated Wire Peeler

The new development of the GD-4 insulated wire peeling machine has been thoroughly updated by our technicians. It uses more advanced cutting-edge technology and a large number of imported accessories, and contains higher technical content. After repeated practice, it has been proved that the use effect is better, stronger and less noisy. The use of this product is greatly superior to similar products. GD-4 enameled wire stripping machine applicable wire diameter: 0.028-0.75mm

This practice proves that the use is better, stronger, and less noisy. The use of this product is greatly superior to similar products.
Installation and Use

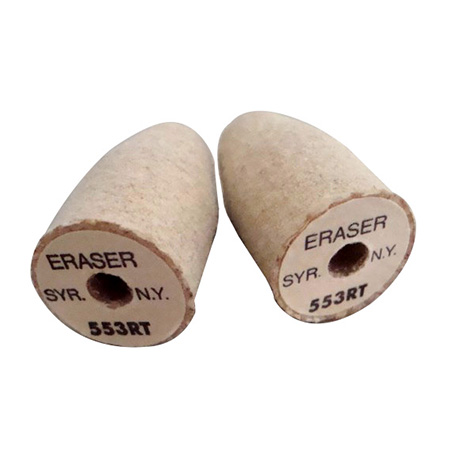

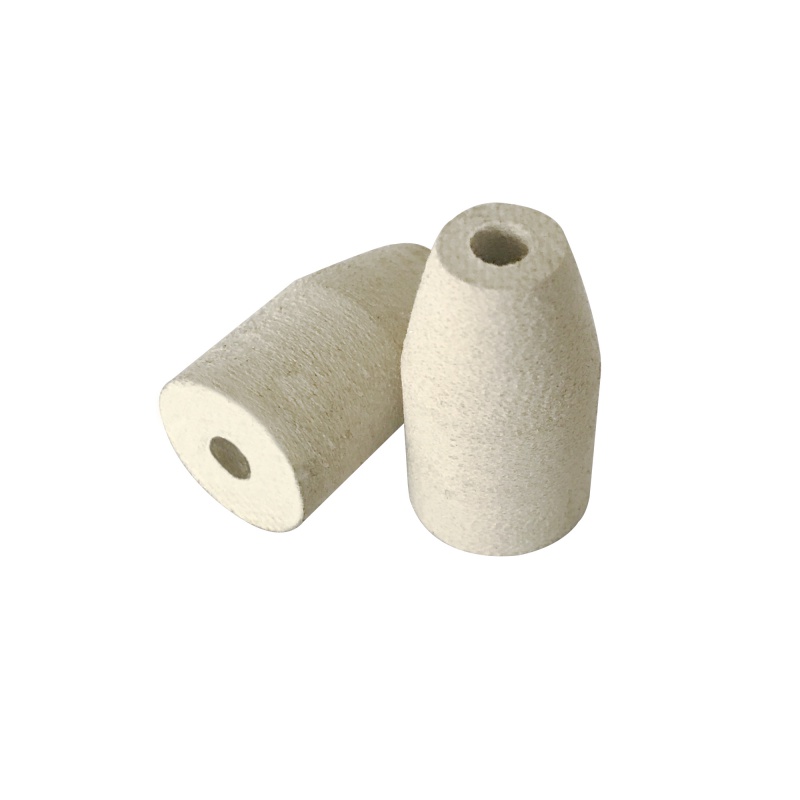

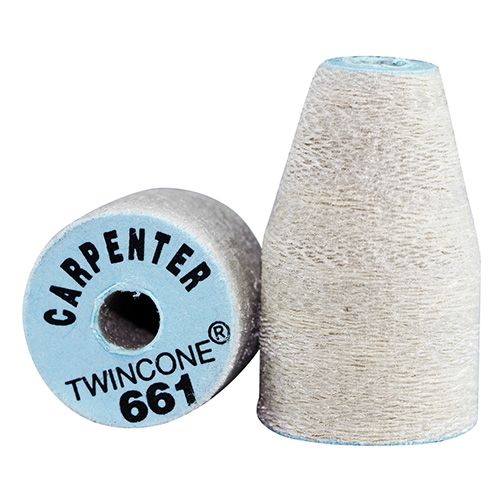

Select the appropriate product of our company — "conical" stripping fiber wheel or imported product "conical fiber wheel", which is installed on both axes of the machine. The tapered part of the stripping wheel is upward, slightly adjust the gap, and start the power supply to make the machine run normally for a while. Turn off the switch when everything is OK. Place the configured mesh sand between the two cones and adjust the distance between the two stripping wheels to loosen them slightly. Restart the device and grind the contact surface of the two wheels by holding the professional mesh sand with your hand to make the contact surface between the two wheels more appropriate. After everything is ready and normal, you can try stripping with the same method. Test the paint stripping effect, the pressure of the contact surfaces of the two paint stripping wheels can be completed by adjusting the device, and finally the desired paint stripping effect can be achieved.
When working, simply pull the treated end of the enameled wire into the conical surface of the paint stripping wheel, and the paint stripping work is completed in the blink of an eye. The principle of grinding off the insulation or oxide of the enameled wire is accomplished by the high-speed operation of the tapered peeling wheel. The stripped enameled wire has a brightly cleaned surface. If one enameled wire is used alone, the paint removal effect is remarkable. (Fine specifications can be multi-stranded.
The tapered paint stripping wheel produced by our company can use the shaft ring on the shaft to move the wheel upward, make a reasonable two-wheel movement, adjust it to the side with use value, repeat the above operation steps, and make it run until it is worn to the bottom of the entire wheel. For ease of operation, the wheels and shafts are inserted directly into the shaft by means of a static fit. So when replacing the new wheel, simply pull the old wheel straight out and insert it into the new wheel. Repeat the steps above and it should be working soon.

Zhongshan Risheng Hardware Products Co., Ltd. mainly focuses on the research and development, manufacturing and sales of insulated wire peeling machine, enameled wire peeling machine, multi-strand wire peeling machine, wire peeling machine, aluminum enameled wire peeling machine sales, paint peeling machine production, enameled wire grinding peeling leather machine, enameled wire peeling machine, peeling leather machine production and so on.
