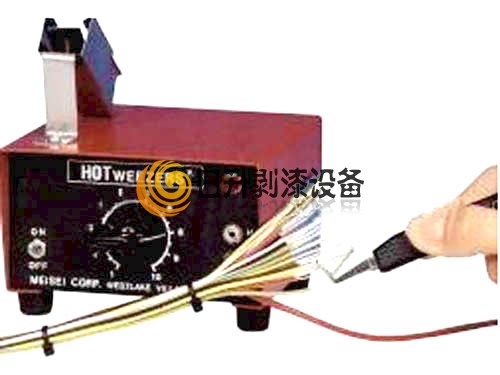

The AT-100 triple-insulated wire thermal stripper | electric thermal stripping pliers are suitable for thermally stripping wires with different outer insulation materials without damaging, scorching or sticking to the wire - an excellent choice for the military, electronics, optoelectronics and related industries.
Performance description:
◇ Strippable insulator materials
For example: PVC, Nylon, Polyethylene, Tefzel, Teflon, Silicone, Rubber, etc.
◇ High-performance blade: The material is high-temperature resistant, wear-resistant, oxidation-resistant, not easy to deform or misalign; equipped with different aperture peeling blade, blade passivation does not damage the line; uniform heating, easy to use, efficient.
◇ New power supply: Adjustable temperature control, automatic conversion of preheating and operating state: When working, the handle is placed in the bracket, and the instrument enters the preheating state; when the handle is picked up from the bracket, the instrument first changes from the preheating state to the strong heating state, and then enters the operating state, and the strong heating time can be self-adjusted.Equipped with a handle safety bracket to prevent falling and scalding of the human body; and has a strong heating function, short waiting time for heating, greatly improving work efficiency.
◇ The exterior design is exquisite, the structure is reasonable, and the operation safety is more user-friendly.
Two safe low-voltage power supply output holes, "HI" or "LO", ◇ can be selected to limit the operating temperature range.
Specifications:
Power supply: 220V AC 50/60 Hz 45W Temperature range: 130°C ~ 860°C

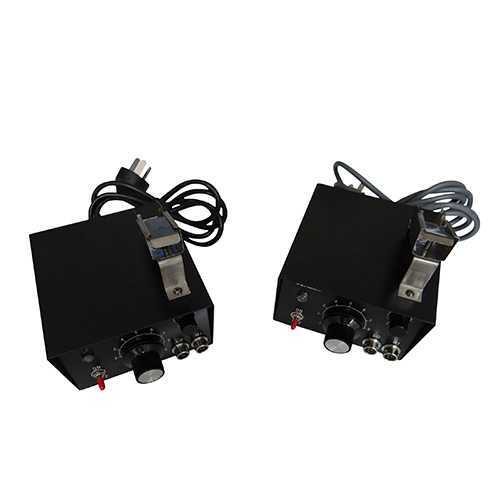

Power supply size: 12cm (L) × 11cm (W) × 7cm (H)

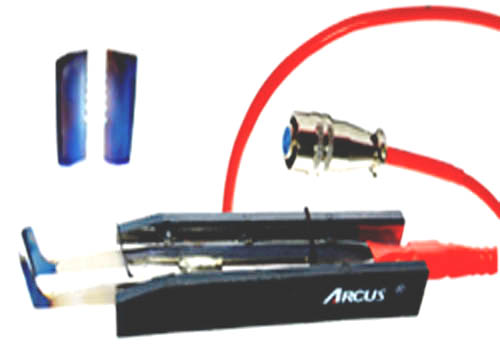

Handle Specifications:
AT-100Aф 0.15 mm ~ ф 0.61 mm wire diameter conductor
AT-100Bф 0.38 mm ~ ф 1.22 mm wire diameter conductor
Maximum wire diameter of AT-100C flat knife edge ф6.3mm
Zhongshan Risheng Hardware Products Co., Ltd. mainly integrates R&D, manufacturing, and sales of electric heating strippers, three-layer insulated wire heat strippers, enameled wire strippers, wire strippers, electric heating strippers, and so on.
